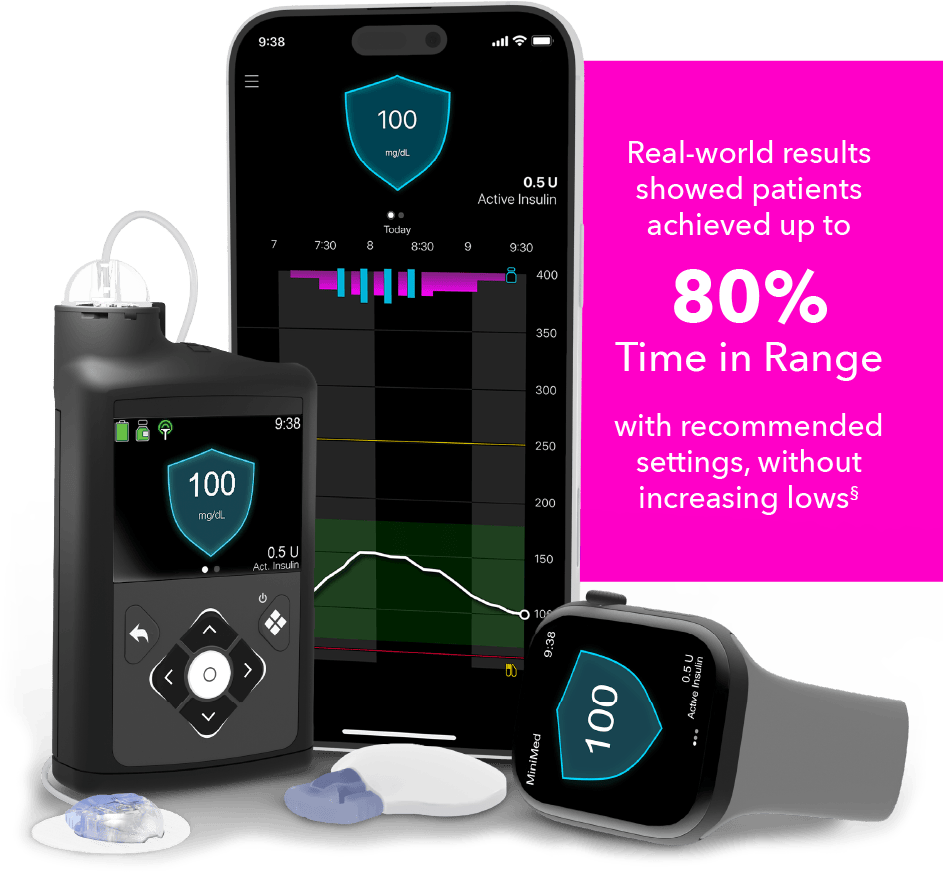

MiniMed™ 780G System
Worry less about exact carb counting
People with type 1 diabetes find more mealtime freedom with the MiniMed™ 780G system.
Get started
You deserve to enjoy your food.
The only system with Meal Detection™ technology‡ that automatically delivers correction§ doses every 5 minutesΩ — allowing for miscalculated carbs or occasionally missed boluses.
So dig in, and enjoy every bite with less stress!
#1 insulin pump in overall satisfaction1-3
Features of the MiniMed™ 780G system
Meal Detection™ technology
If your carb counts aren’t exact or if you occasionally miss a meal dose,‡ the system automatically delivers a correction dose.§
Auto corrections
Help prevent hyper- and hypoglycemia with automatic insulin adjustments all day and night.Ω

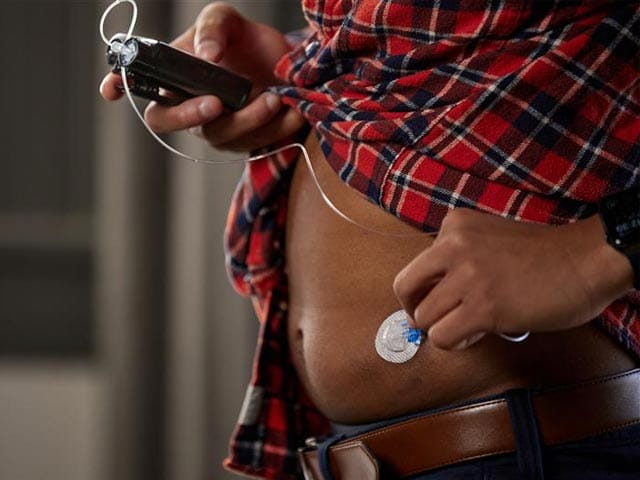

Compatible with the Medtronic Extended™ infusion set
The first and only infusion set that can be worn for up to 7 days.
Treat to target
Flexible glucose targets as low as 100 mg/dL.††Real people. Real experiences.
Our advanced diabetes technology ensures you have the confidence to navigate your own unique journey.
“It works great at keeping my blood sugar in range and back to goal.”
“If I forget to bolus, I know the MiniMed™ 780G system has me covered.”
“I love that I don’t have to stress about counting my carbs.”
| Water resistance | At the time of manufacture and when the reservoir and tubing are properly inserted, your pump is waterproof. It is protected against the effects of being underwater to a depth of up to 12 feet (3.6 meters) for up to 24 hours. This is classified as IPX8 rating. See user guide for more details. The sensor and transmitter are water-resistant at 8 feet (2.4 meters) for up to 30 minutes. CGM readings may not be transmitted from the CGM to the pump while in water. The pump is not intended for submersion in water and is expected to be removed prior to swimming or bathing. |
|---|---|
| Environmental conditions | The MiniMed™ 780G insulin pump system is designed to withstand most conditions encountered in your daily life. Pump operating temperature range is from 41 °F (5 °C) to 98.6 °F (37 °C). Pump storage temperature range is from -4° F (-20° C) to 122° F (50° C). Air pressure range is from 700 hPa to 1060 hPa (10.2 psi to 15.4 psi). |
| Altitude range |
|
| Insulin type | Rapid-acting U100 insulin (Humalog® and NovoLog®) that has been prescribed by a healthcare professional. |
| Bolus delivery | Bolus Speeds
|
| Programming increments |
|
| Basal rate delivery | 0 to 35 units per hour or the Max Basal Rate amount, whichever is lower. |
| Screen |
|
| Battery & power | The pump requires one new AA (1.5 V) battery. For best results, use a new AA lithium (FR6) battery. The pump also accepts an AA alkaline (LR6) or a fully charged AA NiMH (HR6) nickel-metal hydride rechargeable battery. |
| Pump memory | At any time, you can review 30 days of pump history. |
| Size | The pump dimensions in inches are approximately 2.1 width x 3.78 length x 0.96 depth. The weight of the pump is approximately 3 ounces. |
| Warranty |
|
Compatible products |
|
| Reservoir | Medtronic reservoir MMT-332A, 3.0 ml (300-units), Medtronic reservoir MMT0326A, 1.8 ml (180-units). |
| Infusion sets | Medtronic Diabetes offers a wide range of infusion sets so that you can choose the right one for your comfort and safety. |
| Guardian™ 4 transmitter | Used with your pump for continuous glucose monitoring (CGM). A device that connects to a glucose sensor. The transmitter collects data measured by the sensor and wirelessly sends this data to monitoring devices. |
| Guardian™ 4 sensor | Used with your pump for continuous glucose monitoring (CGM). It measures glucose levels every 5 minutes, that’s 288 times a day, and provides you and your pump with up-to-date information on where your glucose levels are, and where they are heading. This data can also be used by the pump to alert you about upcoming high or low and to make adjustments to your insulin delivery. |

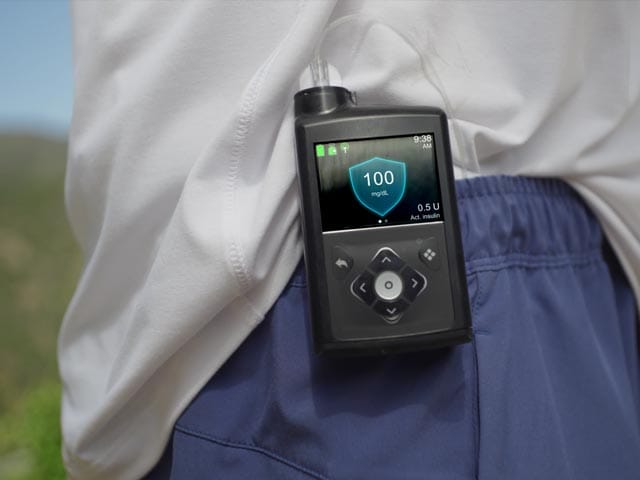

| Accessories | There are many ways to wear your insulin pump. You can attach your pump to your waistband or belt, protect it in your pocket, or even clip it under clothing. |
| Accu-Chek® Guide Link blood glucose meter | The MiniMed™ 780G system comes with a compatible meter. It wirelessly connects to your pump, allowing you to send blood glucose meter readings to your pump. |
App compatibility |
|
| Compatible devices | The MiniMed™ 780G system requires a compatible device for the MiniMed™ Mobile App and the CareLink™ Connect app for care partners. Check our list to see if your smartphone or smart watch is compatible with Medtronic products. We are constantly testing new devices and operating systems (OS) to ensure they will work properly with our apps. As we gain compatibility with more devices and OS, we will continue to update our app compatibility search tool. Devices from selected manufacturers (Samsung, Motorola, Huawei, One Plus, LG, Google, Sony, Xiaomi) may be supported, but they have not been fully tested. Please note, compatibility may vary among the apps. |
If you currently use an in-warranty insulin pump from another manufacturer, you may be eligible for our Switch2System program when you trade in your current device.
Simply trade in your existing pump and pay an upgrade fee of just $499 to switch to the MiniMed™ 780G system. If it doesn’t work out, no problem! Just return it within 90 days. Learn more about our Switch2System program.
Medtronic insulin pumps are covered by most insurance plans. Your out-of-pocket cost varies depending on your insurance. We also offer financial assistance and monthly payment programs. If you would like to receive an insurance coverage check, call us at 1-888-350-5440 (M-F 9:00 am – 6:00 pm CT).
For customers currently on a Medtronic insulin pump, sign in to Diabetes.shop to see your options.
Yes, the MiniMed™ 780G system, is covered by Medicare and Medicare Advantage.
For new customers looking to order the MiniMed™ 780G system submit your interest.
For customers currently on a Medtronic insulin pump, sign in to Diabetes.shop to see your options.
The MiniMed™ 780G system is approved for people living with type 1 diabetes. If you’re interested in upgrading or changing systems, please work with your healthcare team to figure out the right therapy for you.
The MiniMed™ 780G system is approved for people with type 1 diabetes age 7 and over.
Adhering to your diabetes treatment plan and monitoring your blood sugar are important daily steps to take to prevent hyperglycemia concerns. However, the MiniMed™ 780G system has Meal Detection™ technology‡ that can detect if you’ve missed a meal dose and give you more insulin when you need it to help reduce post-meal hyperglycemia.§ Always consult your healthcare team to find out what treatment is right for you.
To check if your smartphone or your Apple Watch® models are compatible, please visit our compatibility tool.
There are two mobile apps that connect with the MiniMed™ 780G system.
MiniMed™ Mobile app for people living with diabetes:
View your diabetes data on your smartphone or Apple Watch®, so you can easily track your glucose levels and get notified if you’re trending high or low. The app also enables automatic uploads of pump and CGM data to CareLink™ software. The MiniMed™ 780G system has the only diabetes mobile app from Medtronic compatible with select Apple Watch®. An iPhone® is required to enable the Apple Watch® extension.
Medtronic Diabetes Updater app for software upgrade:
The Updater app gives you access to our latest software upgrades after you perform this one-time update. The Updater app enables software upgrades for your MiniMed™ 700-series pump, giving you access to the latest technology from Medtronic.
If you are a healthcare professional, we encourage you to visit Medtronic professional diabetes healthcare website.
since 2023
More information and resources for the MiniMed™ 780G system
Footnotes
† Due to inherent real-world study limitations, caution is advised when attempting to extrapolate these results to new patients. There could be significant differences.
‡ Taking a bolus 15 – 20 minutes before a meal helps to keep blood sugar levels under control after eating.
§ Refers to auto correct, which provides bolus assistance. Can deliver all auto correction doses automatically without user interaction, feature can be turned on and off.
Ω Refers to SmartGuard™ feature. Individual results may vary.
†† Glucose targets should be chosen following a consultation with your healthcare provider.
‡‡ Fingersticks required in manual mode and to enter SmartGuard™. If symptoms don’t match alerts and readings, use a fingerstick. Refer to user guide. Pivotal trial participants spend avg of > 93% in SmartGuard™.
Φ Smart devices sold separately. For a list of compatible devices, visit http://bit.ly/CheckDevices.
References
1. Adults, T1 and parents of children with T1 diabetes < 18 years were surveyed.
2. Individual results may vary.
3. dQ&A US Diabetes Patient Panel Report; Customer Overall Satisfaction, n=146; Q4 2023: P.52 (November 2023).
Important safety information: MiniMed™ 780G system with SmartGuard™ technology with Guardian™ 4 sensor
The MiniMed™ 780G system is intended for continuous delivery of basal insulin at selectable rates, and the administration of insulin boluses at selectable amounts for the management of type 1 diabetes mellitus in persons seven years of age and older requiring insulin as well as for the continuous monitoring and trending of glucose levels in the fluid under the skin. The MiniMed™ 780G system includes SmartGuard™ technology, which can be programmed to automatically adjust insulin delivery based on the continuous glucose monitoring (CGM) sensor glucose values and can suspend delivery of insulin when the sensor glucose (SG) value falls below or is predicted to fall below predefined threshold values.
The Medtronic MiniMed™ 780G system consists of the following devices: MiniMed™ 780G insulin pump, the Guardian™ 4 transmitter, the Guardian™ 4 sensor, One-press serter, the Accu-Chek™ Guide Link blood glucose meter, and the Accu-Chek™ Guide test strips. The system requires a prescription from a healthcare professional.
The Guardian™ 4 sensor is intended for use with the MiniMed™ 780G system and the Guardian 4 transmitter to monitor glucose levels for the management of diabetes. The sensor is intended for single use and requires a prescription. The Guardian™ 4 sensor is indicated for up to seven days of continuous use.
The Guardian™ 4 sensor is not intended to be used directly to make therapy adjustments while the MiniMed™ 780G is operating in manual mode. All therapy adjustments in manual mode should be based on measurements obtained using a blood glucose meter and not on values provided by the Guardian™ 4 sensor. The Guardian™ 4 sensor has been studied and is approved for use in patients ages 7 years and older and in the arm insertion site only. Do not use the Guardian™ 4 sensor in the abdomen or other body sites including the buttocks, due to unknown or different performance that could result in hypoglycemia or hyperglycemia.
WARNING: Do not use the SmartGuard™ feature for people who require less than 8 units or more than 250 units of total daily insulin per day. A total daily dose of at least 8 units, but no more than 250 units, is required to operate in the SmartGuard™ feature.
WARNING: Do not use the MiniMed™ 780G system until appropriate training has been received from a healthcare professional. Training is essential to ensure the safe use of the MiniMed™ 780G system.
WARNING: Do not use SG values to make treatment decisions, including delivering a bolus, while the pump is in Manual Mode. When the SmartGuard™ feature is active and you are no longer in Manual Mode, the pump uses an SG value, when available, to calculate a bolus amount. However, if your symptoms do not match the SG value, use a BG meter to confirm the SG value. Failure to confirm glucose levels when your symptoms do not match the SG value can result in the infusion of too much or too little insulin, which may cause hypoglycemia or hyperglycemia.
Pump therapy is not recommended for people whose vision or hearing does not allow for the recognition of pump signals, alerts, or alarms. The safety of the MiniMed™ 780G system has not been studied in pregnant women, persons with type 2 diabetes, or in persons using other anti-hyperglycemic therapies that do not include insulin. For complete details of the system, including product and important safety information such as indications, contraindications, warnings and precautions associated with system and its components, please consult https://www.medtronicdiabetes.com/important-safety-information#minimed-780g and the appropriate user guide at https://www.medtronicdiabetes.com/download-library
